Bayesian Estimation or Edge Selection for Markov Random Fields

Source: R/bgm.R
bgm.Rd

The bgm function estimates the pseudoposterior distribution of threshold and pairwise interaction parameters in a Markov Random Field (MRF) model for binary and/or ordinal variables. Optionally, it performs Bayesian edge selection using spike-and-slab priors to infer the network structure.

Usage

bgm(
  x,
  variable_type = "ordinal",
  reference_category,
  iter = 10000,
  burnin = 500,
  interaction_scale = 2.5,
  threshold_alpha = 0.5,
  threshold_beta = 0.5,
  edge_selection = TRUE,
  edge_prior = c("Bernoulli", "Beta-Bernoulli", "Stochastic-Block"),
  inclusion_probability = 0.5,
  beta_bernoulli_alpha = 1,
  beta_bernoulli_beta = 1,
  dirichlet_alpha = 1,
  lambda = 1,
  na_action = c("listwise", "impute"),
  save = FALSE,
  display_progress = TRUE
)

Arguments

x

A data frame or matrix with n rows and p columns containing binary and ordinal responses. Binary and ordinal variables are automatically recoded to non-negative integers (0, 1, ..., m). For regular ordinal variables, unobserved categories are collapsed; for Blume-Capel variables, all categories are retained.

variable_type

Character or character vector. Specifies the type of each variable in x. Allowed values: "ordinal" or "blume-capel". Binary variables are automatically treated as "ordinal". Default: "ordinal".

reference_category

Integer or vector. Reference category used in Blume-Capel variables. Can be a single integer (applied to all) or a vector of length p. Required if at least one variable is of type "blume-capel".

iter

Integer. Number of Gibbs sampling iterations. Default: 1e4. For stable estimates, consider using at least 1e5.

burnin

Integer. Number of burn-in iterations before saving samples. When edge_selection = TRUE, the function runs 2 * burnin iterations: first half without edge selection, second half with edge selection. Default: 1e3.

interaction_scale

Double. Scale of the Cauchy prior for pairwise interaction parameters. Default: 2.5.

threshold_alpha, threshold_beta

Double. Shape parameters of the beta-prime prior for threshold parameters. Must be positive. If equal, the prior is symmetric. Defaults: threshold_alpha = 0.5 and threshold_beta = 0.5.

edge_selection

Logical. Whether to perform Bayesian edge selection. If FALSE, the model estimates all edges. Default: TRUE.

edge_prior

Character. Specifies the prior for edge inclusion. Options: "Bernoulli", "Beta-Bernoulli", or "Stochastic-Block". Default: "Bernoulli".

inclusion_probability

Numeric scalar or matrix. Prior inclusion probability of each edge (used with the Bernoulli prior). A single value applies to all edges; a matrix allows edge-specific probabilities. Default: 0.5.

beta_bernoulli_alpha, beta_bernoulli_beta

Double. Shape parameters for the beta distribution in the Beta-Bernoulli prior. Must be positive. Defaults: beta_bernoulli_alpha = 1 and beta_bernoulli_beta = 1.

dirichlet_alpha

Double. Concentration parameter of the Dirichlet prior on block assignments (used with the Stochastic Block Model). Default: 1.

lambda

Double. Rate of the zero-truncated Poisson prior on the number of clusters in the Stochastic Block Model. Default: 1.

na_action

Character. Specifies missing data handling. "listwise" deletes rows with missing values. "impute" imputes missing values during MCMC. Default: "listwise".

save

Logical; deprecated. Whether to return all sampled states from the Gibbs sampler. If FALSE, only posterior means are returned. Default: FALSE.

display_progress

Logical. Whether to show a progress bar during sampling. Default: TRUE.

Value

A list of class "bgms" containing posterior summaries or sampled states, depending on the save option:

If save = FALSE (default), the list contains model-averaged posterior summaries:

  • indicator: A p × p matrix of posterior inclusion probabilities for each edge.

  • interactions: A p × p matrix of posterior means for pairwise interactions.

  • thresholds: A p × max(m) matrix of posterior means for threshold parameters. For Blume-Capel variables, the first entry corresponds to the linear term and the second to the quadratic term.

If save = TRUE, the list also includes raw MCMC samples:

  • indicator: A matrix with iter rows and p × (p - 1) / 2 columns; sampled edge inclusion indicators.

  • interactions: A matrix with iter rows and p × (p - 1) / 2 columns; sampled interaction parameters.

  • thresholds: A matrix with iter rows and sum(m) columns; sampled threshold parameters.

If edge_prior = "Stochastic-Block", two additional components may be returned:

  • allocations: A vector (or matrix if save = TRUE) with posterior cluster assignments for each node.

  • components: A matrix of posterior probabilities for the number of clusters, based on sampled allocations.

Column-wise averages of the sampled matrices yield posterior means, except for allocations, which should be summarized using summarySBM().

The returned list also includes some of the function call arguments, useful for post-processing.

Details

This function models the joint distribution of binary and ordinal variables using a Markov Random Field, with support for edge selection through Bayesian variable selection. Key components of the model are described in the sections below.

Ordinal Variables

The function supports two types of ordinal variables:

Regular ordinal variables: Assign a threshold parameter to each response category except the lowest. The model imposes no additional constraints on the distribution of category responses.

Blume-Capel ordinal variables: Assume a reference category (e.g., a “neutral” response) and score responses by distance from this reference. Thresholds are modeled quadratically:

$$\mu_{c} = \alpha \cdot c + \beta \cdot (c - r)^2$$

where:

  • \(\mu_{c}\): threshold for category \(c\)

  • \(\alpha\): linear trend across categories

  • \(\beta\): preference toward or away from the reference

    • If \(\beta < 0\), the model favors responses near the reference category;

    • if \(\beta > 0\), it favors responses farther away (i.e., extremes).

  • \(r\): reference category

Edge Selection

When edge_selection = TRUE, the function performs Bayesian variable selection on the pairwise interactions (edges) in the MRF using spike-and-slab priors.

Supported priors for edge inclusion:

  • Bernoulli: Fixed inclusion probability across edges.

  • Beta-Bernoulli: Inclusion probability is assigned a Beta prior distribution.

  • Stochastic Block Model: Cluster-based edge priors with Beta, Dirichlet, and Poisson hyperpriors.

All priors operate via binary indicator variables controlling the inclusion or exclusion of each edge.

Prior Distributions

  • Interaction parameters: Modeled with a Cauchy slab prior.

  • Threshold parameters: Modeled using a beta-prime distribution.

  • Edge indicators: Use either a Bernoulli, Beta-Bernoulli, or SBM prior (as above).

Gibbs Sampling

Parameters are estimated using a Metropolis-within-Gibbs sampling scheme. When edge_selection = TRUE, the algorithm runs 2 * burnin warmup iterations:

  • First half without edge selection.

  • Second half with edge selection enabled.

This warmup strategy improves stability of adaptive Metropolis-Hastings proposals and starting values.

Missing Data

If na_action = "listwise", observations with missing values are removed. If na_action = "impute", missing values are imputed during MCMC.

References

There are no references for Rd macro \insertAllCites on this help page.

Examples

# \donttest{
# Store user par() settings
op <- par(no.readonly = TRUE)

# Run bgm on the Wenchuan dataset
# For reliable results, consider using at least 1e5 iterations
fit <- bgm(x = Wenchuan, iter = 1e4)
#> Warning: There were 18 rows with missing observations in the input matrix x.
#> Since na_action = listwise these rows were excluded from the analysis.

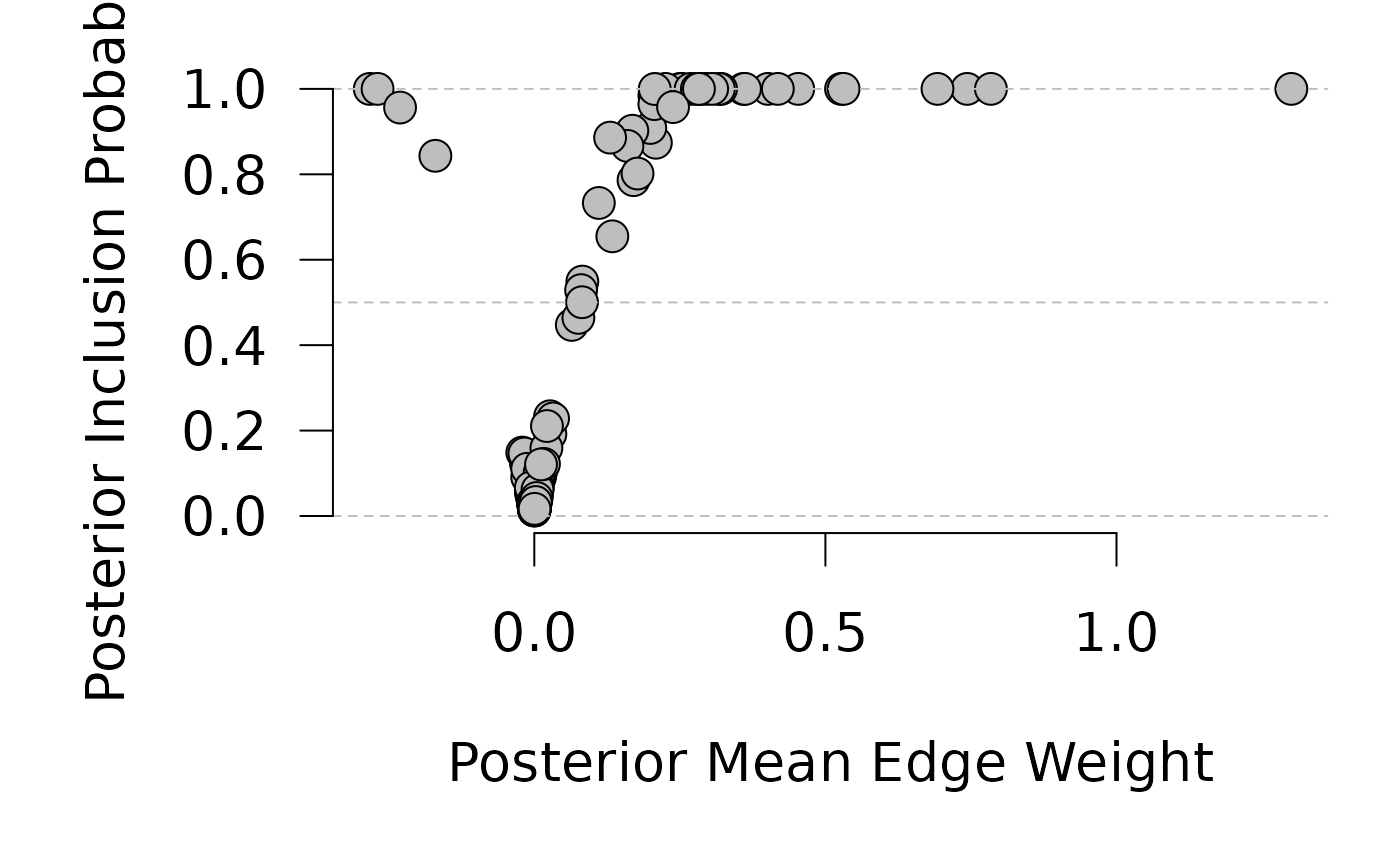

#--- INCLUSION VS EDGE WEIGHT ----------------------------------------------
edge_weights <- fit$interactions[lower.tri(fit$interactions)]
incl_probs   <- fit$indicator[lower.tri(fit$indicator)]

par(mar = c(5, 5, 1, 1) + 0.1, cex = 1.7)
plot(edge_weights, incl_probs,
     pch = 21, bg = "gray", cex = 1.3,
     ylim = c(0, 1), axes = FALSE,
     xlab = "", ylab = "")
abline(h = c(0, 0.5, 1), lty = 2, col = "gray")
axis(1); axis(2, las = 1)
mtext("Posterior Mean Edge Weight", side = 1, line = 3, cex = 1.7)
mtext("Posterior Inclusion Probability", side = 2, line = 3, cex = 1.7)

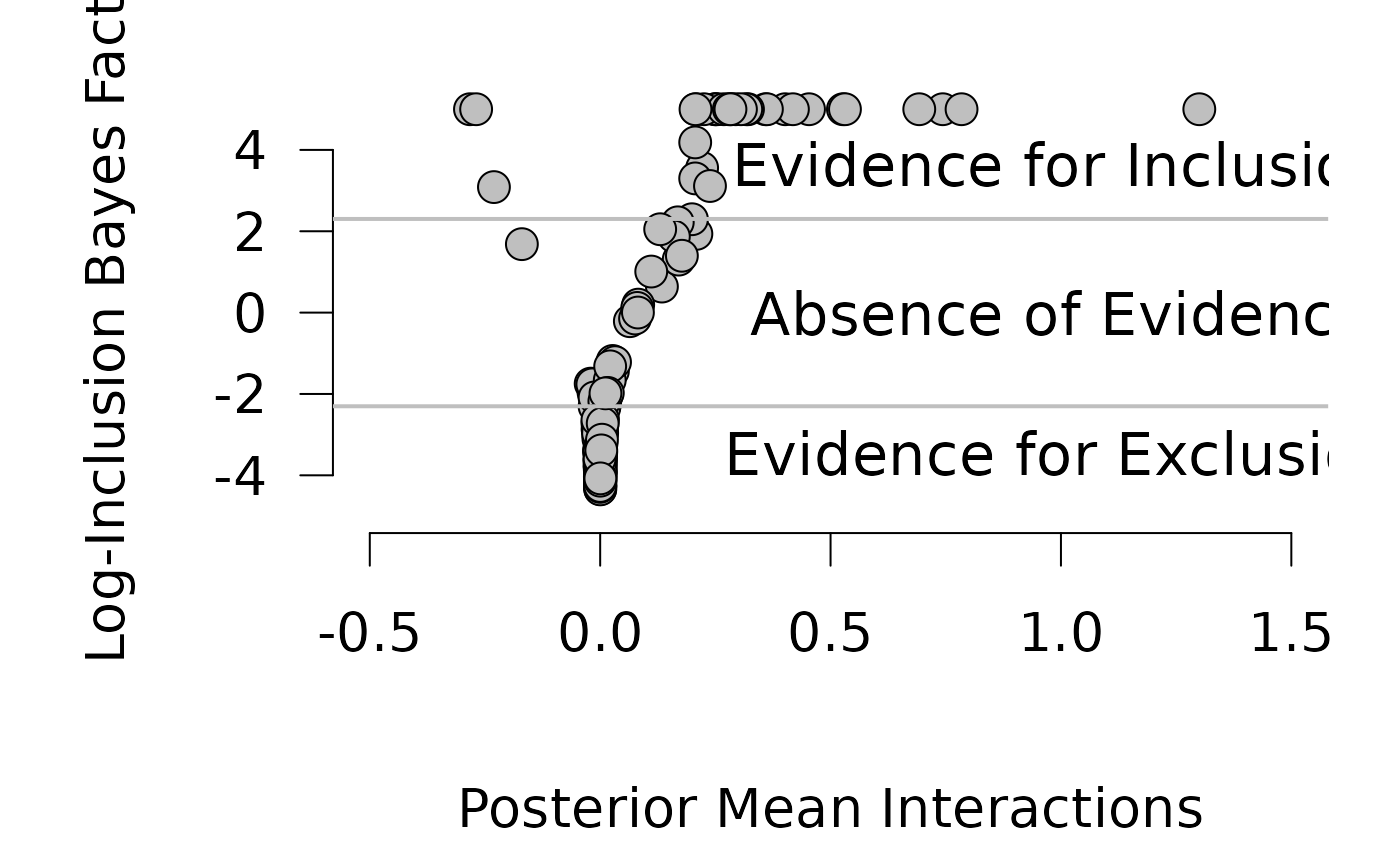

#--- EVIDENCE PLOT ----------------------------------------------------------
prior_odds <- 1
post_odds <- incl_probs / (1 - incl_probs)
log_bf <- log(post_odds / prior_odds)
log_bf <- pmin(log_bf, 5)  # cap extreme values

plot(edge_weights, log_bf,
     pch = 21, bg = "#bfbfbf", cex = 1.3,
     axes = FALSE, xlab = "", ylab = "",
     ylim = c(-5, 5.5), xlim = c(-0.5, 1.5))
axis(1); axis(2, las = 1)
abline(h = log(c(1/10, 10)), lwd = 2, col = "#bfbfbf")
text(1, log(1 / 10), "Evidence for Exclusion", pos = 1, cex = 1.1)
text(1, log(10),     "Evidence for Inclusion", pos = 3, cex = 1.1)
text(1, 0,           "Absence of Evidence", cex = 1.1)
mtext("Log-Inclusion Bayes Factor", side = 2, line = 3, cex = 1.7)
mtext("Posterior Mean Interactions", side = 1, line = 3.7, cex = 1.7)

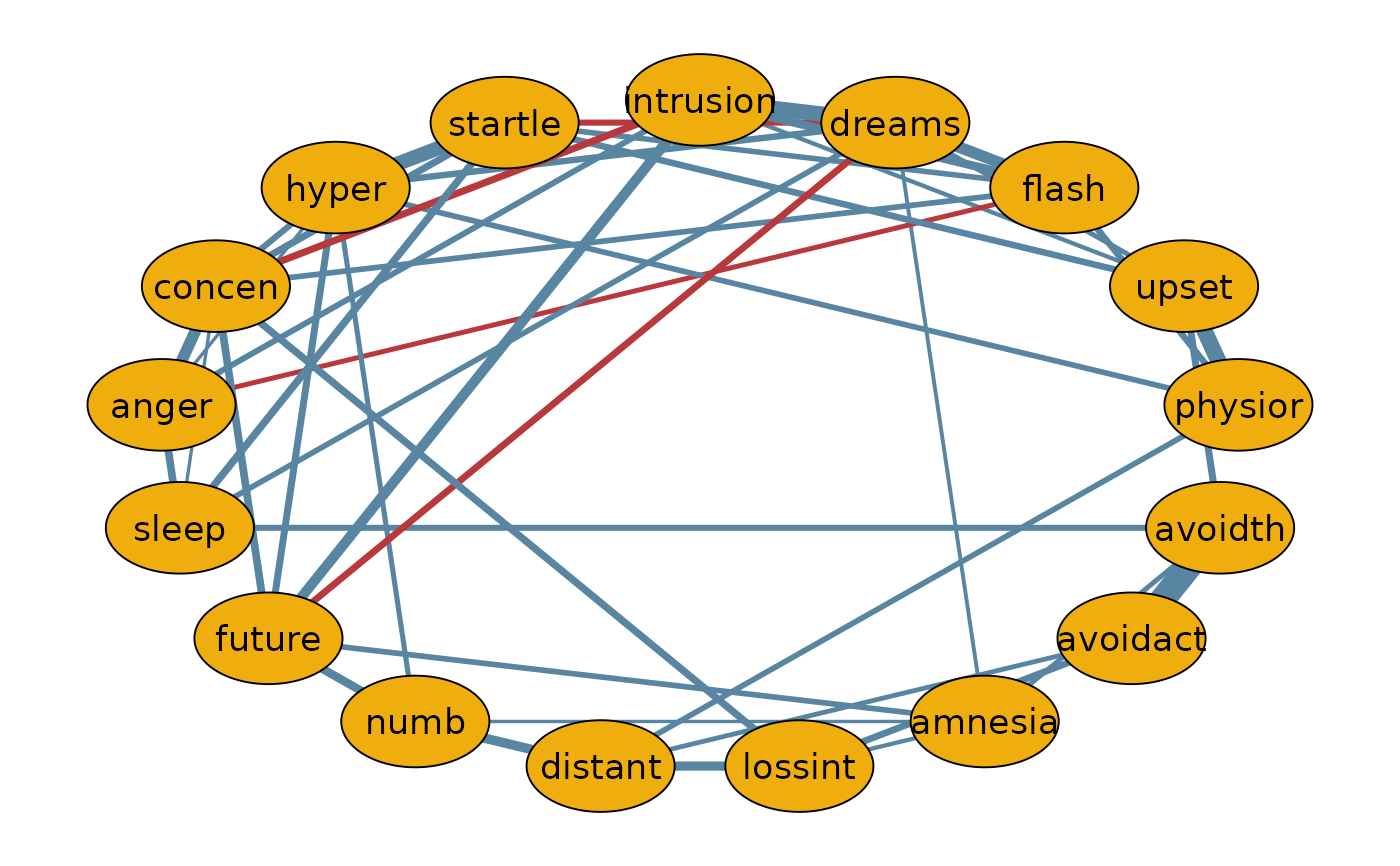

#--- MEDIAN PROBABILITY NETWORK --------------------------------------------
median_edges <- ifelse(incl_probs >= 0.5, edge_weights, 0)
n <- ncol(Wenchuan)
net <- matrix(0, n, n)
net[lower.tri(net)] <- median_edges
net <- net + t(net)
dimnames(net) <- list(colnames(Wenchuan), colnames(Wenchuan))

par(cex = 1)
if (requireNamespace("qgraph", quietly = TRUE)) {
  qgraph::qgraph(net,
    theme = "TeamFortress", maximum = 0.5, fade = FALSE,
    color = "#f0ae0e", vsize = 10, repulsion = 0.9,
    label.cex = 1.1, label.scale = FALSE,
    labels = colnames(Wenchuan)
  )
}


# Restore user par() settings
par(op)
# }
