Bayesian Variable Selection or Bayesian Estimation for Differences in Markov Random Fields

Source: R/bgmCompare.R
bgmCompare.Rd

The bgmCompare function estimates the pseudoposterior distribution of the parameters of a Markov Random Field (MRF) model for mixed binary and ordinal variables, as well as differences in pairwise interactions and category thresholds across groups. Groups are assumed to be G independent samples.

Usage

bgmCompare(
  x,
  y,
  g,
  difference_selection = TRUE,
  main_difference_model = c("Free", "Collapse", "Constrain"),
  variable_type = "ordinal",
  reference_category,
  pairwise_difference_scale = 1,
  main_difference_scale = 1,
  pairwise_difference_prior = c("Bernoulli", "Beta-Bernoulli"),
  main_difference_prior = c("Bernoulli", "Beta-Bernoulli"),
  pairwise_difference_probability = 0.5,
  main_difference_probability = 0.5,
  pairwise_beta_bernoulli_alpha = 1,
  pairwise_beta_bernoulli_beta = 1,
  main_beta_bernoulli_alpha = 1,
  main_beta_bernoulli_beta = 1,
  interaction_scale = 2.5,
  threshold_alpha = 0.5,
  threshold_beta = 0.5,
  iter = 10000,
  burnin = 1000,
  na_action = c("listwise", "impute"),
  save = FALSE,
  save_main = FALSE,
  save_pairwise = FALSE,
  save_indicator = FALSE,
  display_progress = TRUE
)

Arguments

x

Data frame or matrix with binary and ordinal responses. Regular ordinal variables should be coded as integers starting from 0. Missing categories are collapsed for regular ordinal variables but retained for Blume-Capel variables.

y

A data frame or matrix similar to x, used for two-group designs. x contains Group 1 data, and y contains Group 2 data. Ignored for multi-group designs.

g

Group membership vector for rows in x. Required for multi-group designs; ignored if y is provided.

difference_selection

Logical. If TRUE, the function models the inclusion or exclusion of parameter differences. Default: TRUE.

main_difference_model

Character. Specifies how to handle threshold differences when categories are unmatched. Options: "Collapse", "Free". The option "Collapse" collapses categories unobserved in one or more groups. The option "Free" option estimates thresholds separately for each group and does not model their difference. Default: "Free".

variable_type

Character or vector. Specifies the type of variables in x ("ordinal" or "blume-capel"). Default: "ordinal".

reference_category

Integer or vector. Reference category for Blume-Capel variables. Required if there is at least one Blume-Capel variable.

pairwise_difference_scale

Double. Scale parameter for the Cauchy prior on pairwise differences. Default: 1.

main_difference_scale

Double. Scale parameter for the Cauchy prior on threshold differences. Default: 1.

pairwise_difference_prior, main_difference_prior

Character. Specifies the inclusion probability model ("Bernoulli" or "Beta-Bernoulli"). Default: "Bernoulli".

pairwise_difference_probability

A numeric value or a \(p \times p\) matrix specifying the prior inclusion probability of a pairwise difference in the Bernoulli model. A single value applies the same probability to all pairs, while a matrix allows for edge-specific probabilities. Default: 0.5 for equal prior probability for inclusion and exclusion.

main_difference_probability

A numeric value or a length-\(p\) vector specifying the prior inclusion probability of a threshold difference in the Bernoulli model. A single value applies the same probability to all variables, while a vector allows for variable-specific probabilities. Default: 0.5 to indicate no prior preference.

pairwise_beta_bernoulli_alpha, pairwise_beta_bernoulli_beta

Double. Shape parameters for the Beta-Bernoulli prior on pairwise differences.

main_beta_bernoulli_alpha, main_beta_bernoulli_beta

Double. Shape parameters for the Beta-Bernoulli prior on threshold differences.

interaction_scale

Double. Scale of the Cauchy prior for nuisance pairwise interactions. Default: 2.5.

threshold_alpha, threshold_beta

Double. Shape parameters for the beta-prime prior on nuisance threshold parameters.

iter, burnin

Integer. Number of Gibbs iterations (iter) and burn-in iterations (burnin). Defaults: iter = 1e4, burnin = 1e3.

na_action

Character. Specifies handling of missing data. "listwise" deletes rows with missing values; "impute" imputes values during Gibbs sampling. Default: "listwise".

save

Logical. If true, sampled states for all parameters are returned. Deprecated.

save_main, save_pairwise, save_indicator

Logical. Enable saving sampled states for main_effects, pairwise_effects, and indicator, respectively. Default: FALSE.

display_progress

Logical. Show progress bar during computation. Default: TRUE.

Value

A list containing the posterior means and, optionally, sampled states based on the save_* options. The returned components include:

  • posterior_mean_main, posterior_mean_pairwise, and posterior_mean_indicator for posterior means.

  • If saving options are enabled, the list also includes:

    • raw_samples_main – sampled states of main effects.

    • raw_samples_pairwise – sampled states of pairwise effects.

    • raw_samples_indicator – sampled states of inclusion indicators.

In addition to the results of the analysis, the output lists some of the arguments of its call. This is useful for post-processing the results.

Details

This function models group differences in Markov Random Fields using a Bayesian framework. It supports binary and ordinal variables, and includes options for Bayesian variable selection on the differences in both pairwise interactions and threshold parameters. Key components are described in the sections below.

Pairwise Interactions

Pairwise interactions between variables i and j are modeled as: $$\boldsymbol{\theta}_{ij} = \phi_{ij} + \boldsymbol{\delta}_{ij},$$ where:

  • \(\boldsymbol{\theta}_{ij}\) is the vector of pairwise interaction parameters of length G.

  • \(\phi_{ij}\) is the overall pairwise interaction (nuisance parameter).

  • \(\boldsymbol{\delta}_{ij}\) represents group-specific differences constrained to sum to zero for identification.

Ordinal Variables

The function supports two types of ordinal variables:

Regular ordinal variables: Introduce a threshold parameter for each category except the lowest, modeled as: $$\boldsymbol{\mu}_{ic} = \tau_{ic} + \boldsymbol{\epsilon}_{ic},$$ where:

  • \(\tau_{ic}\) denotes an overall effect (nuisance parameter).

  • \(\boldsymbol{\epsilon}_{ic}\) represents group-specific differences constrained to sum to zero.

Blume-Capel ordinal variables: Assume a specific reference category and score responses based on distance to it: $$\boldsymbol{\mu}_{ic} = (\tau_{i1} + \boldsymbol{\epsilon}_{i1}) \cdot c + (\tau_{i2} + \boldsymbol{\epsilon}_{i2}) \cdot (c - r)^2,$$ where:

  • r is the reference category.

  • \(\tau_{i1}\) and \(\tau_{i2}\) are nuisance parameters.

  • \(\boldsymbol{\epsilon}_{i1}\) and \(\boldsymbol{\epsilon}_{i2}\) represent group-specific differences.

Variable Selection

Bayesian variable selection enables testing of parameter differences or equivalence across groups. Independent spike-and-slab priors are applied to difference parameters:

  • Bernoulli Model: Assigns a fixed probability to parameter inclusion.

  • Beta-Bernoulli Model: Incorporates a beta prior to model inclusion probabilities.

Gibbs Sampling

Parameters are estimated using a Metropolis-within-Gibbs sampling scheme. When difference_selection = TRUE, the algorithm runs 2 * burnin warmup iterations:

  • First half without difference selection.

  • Second half with edge selection enabled.

This warmup strategy improves stability of adaptive Metropolis-Hastings proposals and starting values.

Saving Options

Users can store sampled states for parameters (main_effects, pairwise_effects, indicator) during Gibbs sampling. Enabling these options (save_main, save_pairwise, save_indicator) increases output size and memory usage, so use them judiciously.

Examples

# \donttest{
# Store user par() settings
op <- par(no.readonly = TRUE)

# Run bgmCompare on the Boredom dataset
# For publication-quality results, consider using at least 1e5 iterations
fit <- bgmCompare(x = Boredom[, -1], g = Boredom[, 1], iter = 1e4)

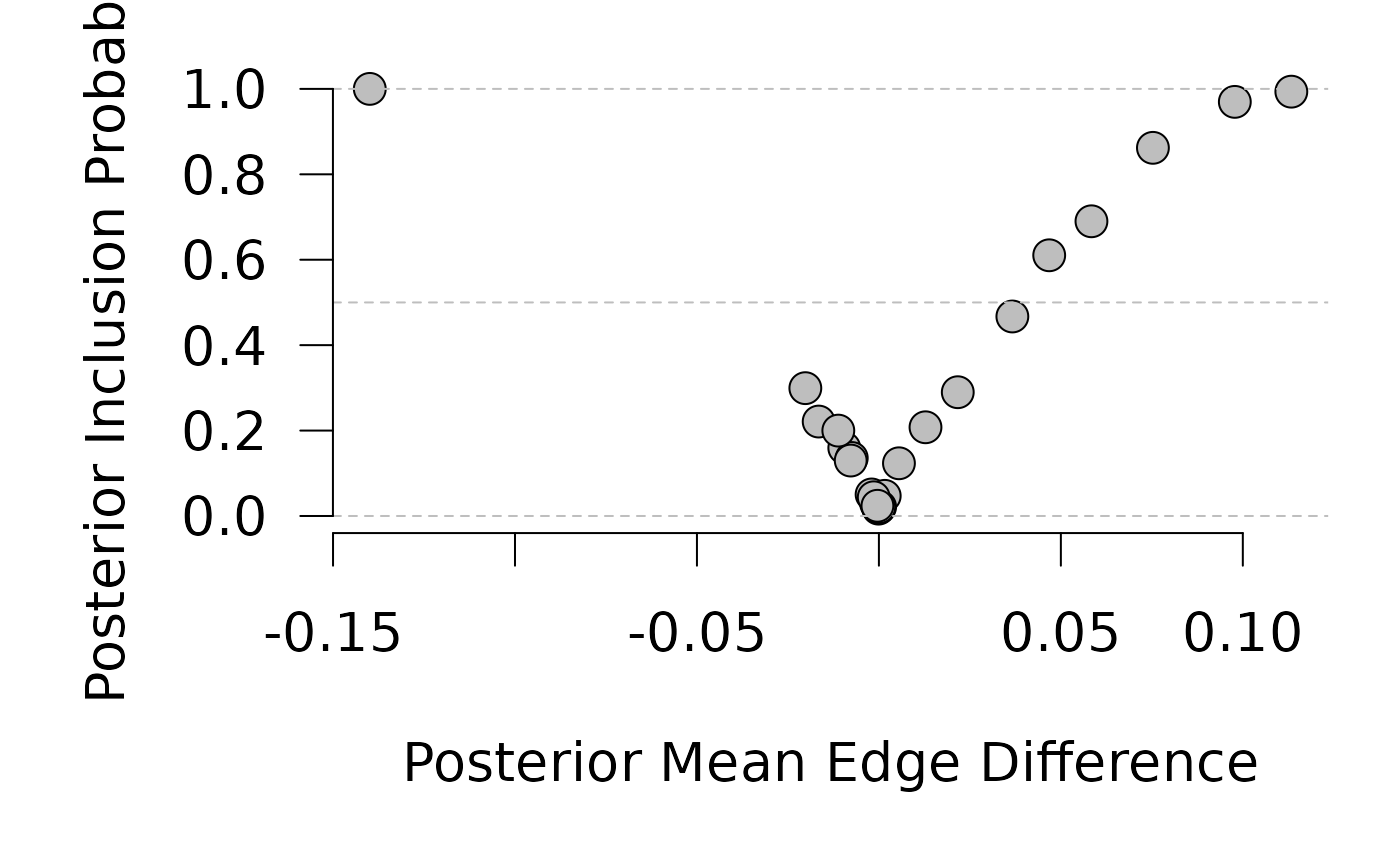

#--- INCLUSION VS EDGE DIFFERENCE PLOT -------------------------------------
incl_probs <- fit$posterior_mean_indicator[lower.tri(fit$posterior_mean_indicator)]
edge_diffs <- 2 * fit$posterior_mean_pairwise[, 3]

par(mar = c(5, 5, 1, 1) + 0.1, cex = 1.7)
plot(edge_diffs, incl_probs,
     pch = 21, bg = "gray", cex = 1.3,
     ylim = c(0, 1), axes = FALSE,
     xlab = "", ylab = "")
abline(h = c(0, 0.5, 1), lty = 2, col = "gray")
axis(1); axis(2, las = 1)
mtext("Posterior Mean Edge Difference", side = 1, line = 3, cex = 1.7)
mtext("Posterior Inclusion Probability", side = 2, line = 3, cex = 1.7)

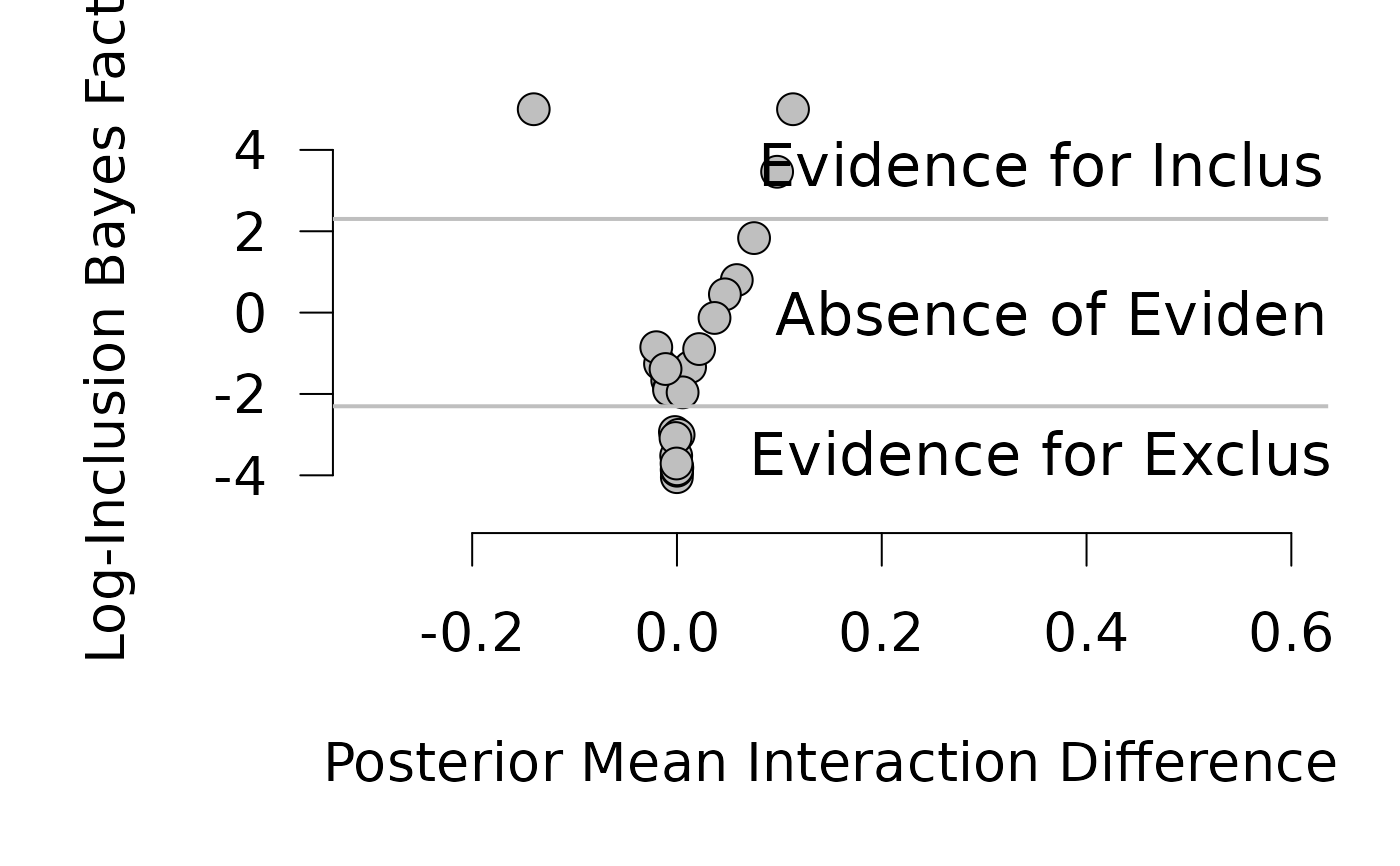

#--- EVIDENCE PLOT ----------------------------------------------------------
prior_odds <- 1
post_odds <- incl_probs / (1 - incl_probs)
log_bf <- log(post_odds / prior_odds)
log_bf <- pmin(log_bf, 5)  # cap extreme values

plot(edge_diffs, log_bf,
     pch = 21, bg = "#bfbfbf", cex = 1.3,
     axes = FALSE, xlab = "", ylab = "",
     ylim = c(-5, 5.5), xlim = c(-0.3, 0.6))
axis(1); axis(2, las = 1)
abline(h = log(c(1/10, 10)), lwd = 2, col = "#bfbfbf")
text(0.4, log(1/10), "Evidence for Exclusion", pos = 1, cex = 1.1)
text(0.4, log(10),   "Evidence for Inclusion", pos = 3, cex = 1.1)
text(0.4, 0,         "Absence of Evidence", cex = 1.1)
mtext("Log-Inclusion Bayes Factor", side = 2, line = 3, cex = 1.7)
mtext("Posterior Mean Interaction Difference", side = 1, line = 3, cex = 1.7)

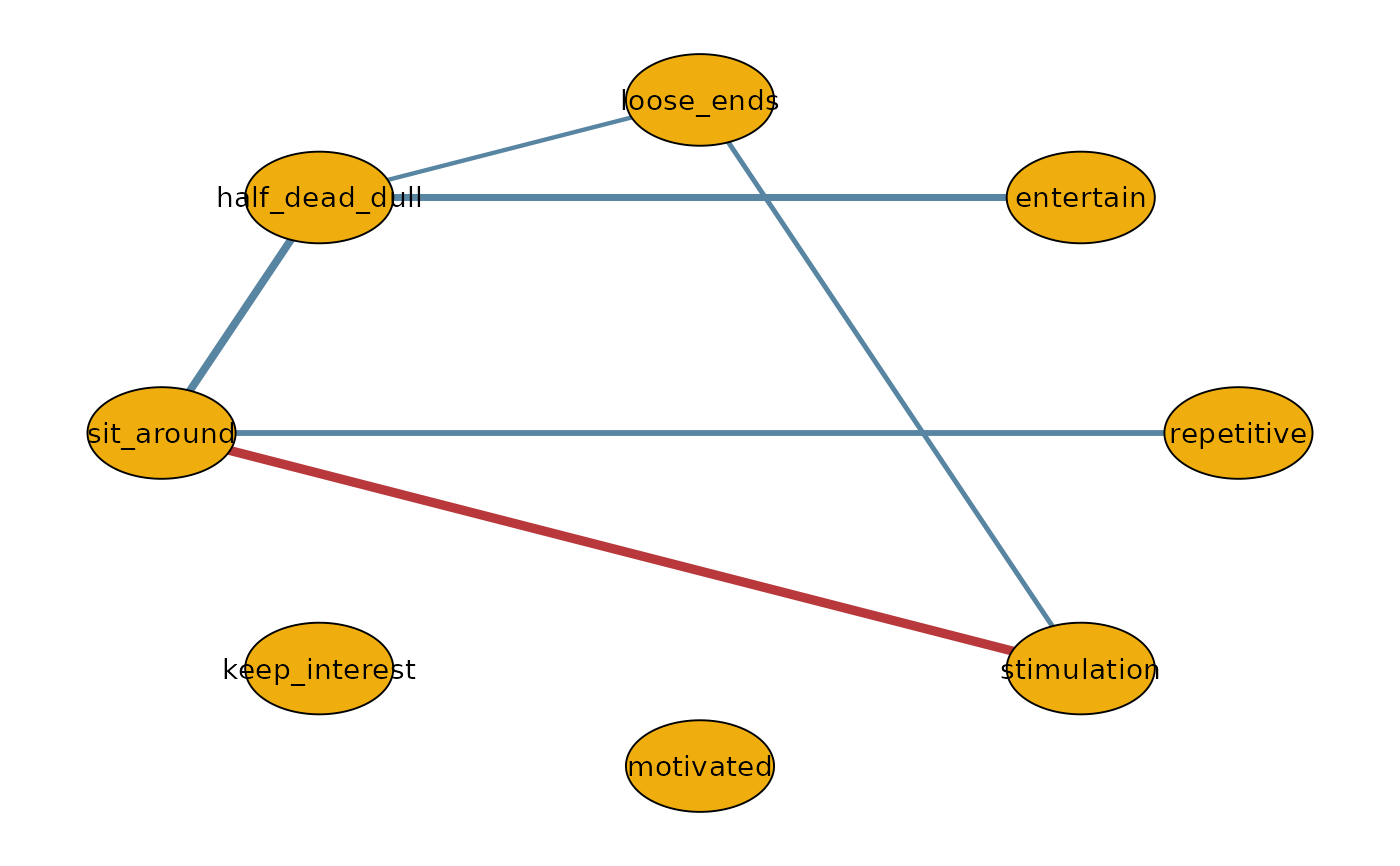

#--- MEDIAN PROBABILITY DIFFERENCE NETWORK ----------------------------------
median_edges <- ifelse(incl_probs >= 0.5, edge_diffs, 0)
p <- ncol(Boredom) - 1
median_net <- matrix(0, nrow = p, ncol = p)
median_net[lower.tri(median_net)] <- median_edges
median_net <- median_net + t(median_net)

node_labels <- colnames(Boredom[, -1])
dimnames(median_net) <- list(node_labels, node_labels)

par(cex = 1)
if (requireNamespace("qgraph", quietly = TRUE)) {
  qgraph::qgraph(median_net,
    theme = "TeamFortress", maximum = 0.5, fade = FALSE,
    color = "#f0ae0e", vsize = 10, repulsion = 0.9,
    label.cex = 0.9, label.scale = FALSE,
    labels = node_labels
  )
}


# Restore user par() settings
par(op)
# }
